Vibrating Feeder

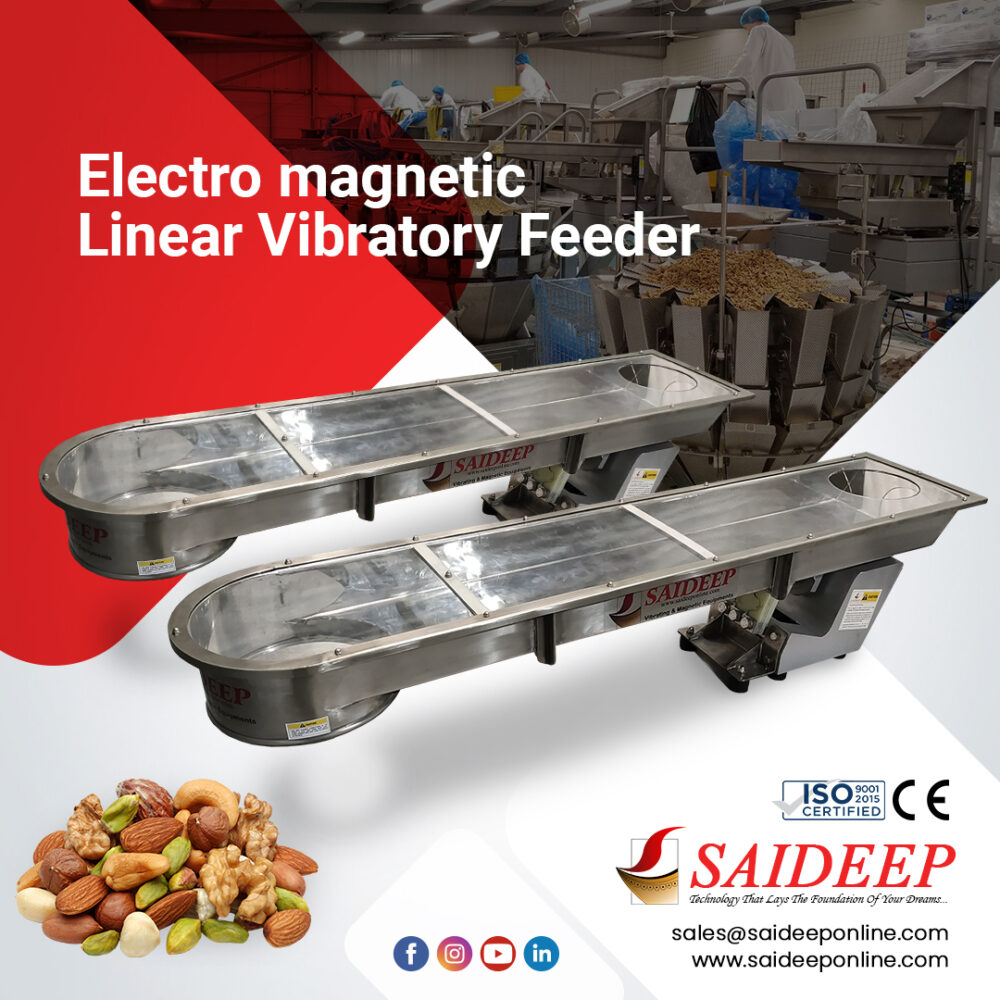

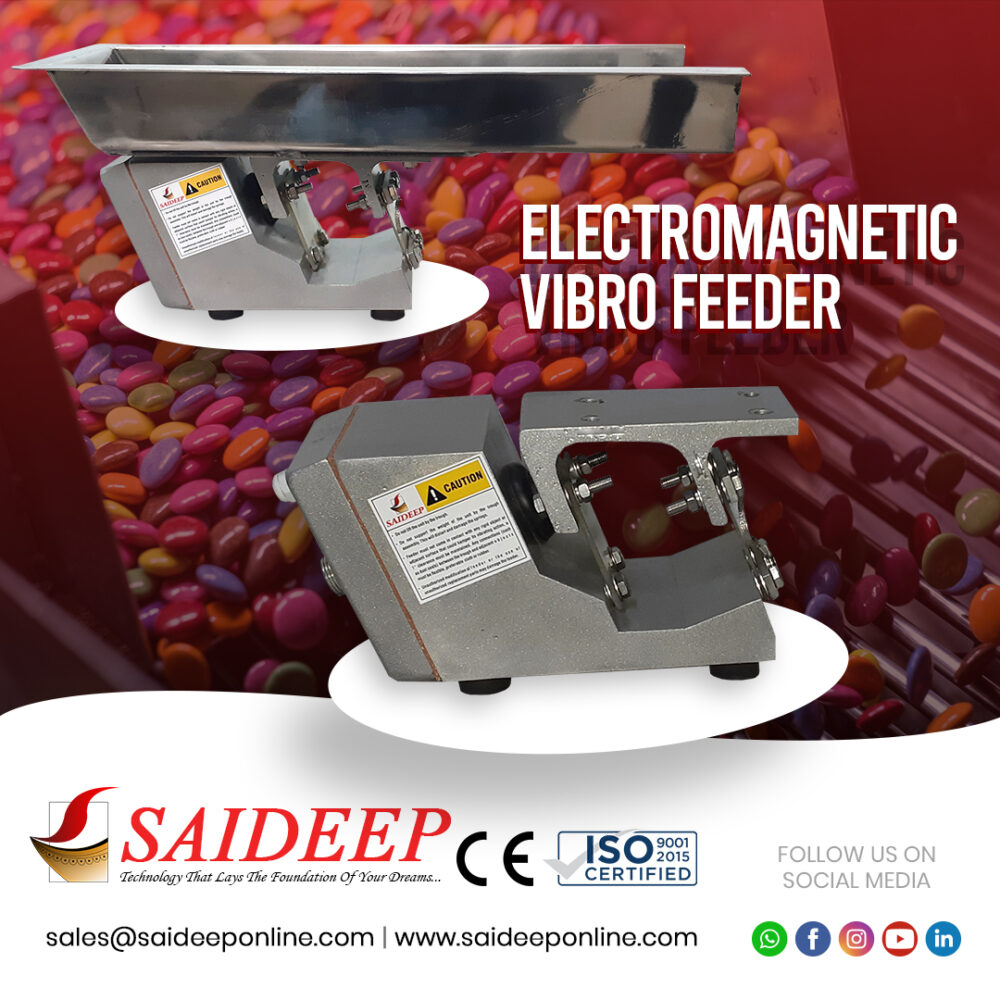

The Electromagnetic Vibratory Feeder consists of a specially designed robust electromagnetic coil & custom crafted tray made of mild steel or stainless steel. The tray which is connected to the armature of the drive vibrates as the magnetic coil gets energized. The vibration sets the material in motion. Vibrations can be controlled through variable voltage controller for vibrating feeders. The casting housing the electromagnet is made in totally enclosed design to prevent dusting.
Useful to any continuous process industry where automatic controlled flow of material is required.
Features
- Capacity Range: Few Grams to 200 Tons/Hour.
- Customized Tray Designs: Pan Tray, Scarf Tray, Zig-Zag Tray, Tube, Screening Tray.
- Option for Tray Material: SS 304 / 316L Or Mild Steel.
- Winding Type: High Temperature sustainable copper windings.
- Enclosure: Dust Proof.
- Easy Armature Gap adjustment.
- Various Types of Controller Options: Standard Voltage Controller, Digital Voltage Controller, Variable Frequency & Voltage Controller.
- Input Supply Options: Light Duty Drives 230/110 Volts 50/60 Hz Single Phase | Heavy Duty Drives 415 Volts | 50 Hz Two Phase.
- Mounting Type: Base Mounted Or Suspension Mounted.
Specifications
| Feed capacity | From a few grams to 200 tonnes per hour, depending on material bulk density |
| Light-Duty drive supply | 230 V, 50 Hz, Single Phase |
| Heavy-Duty drive supply | 415 V, 50 Hz, Two Phase |
| Custom supply | Other voltages and frequencies to order |

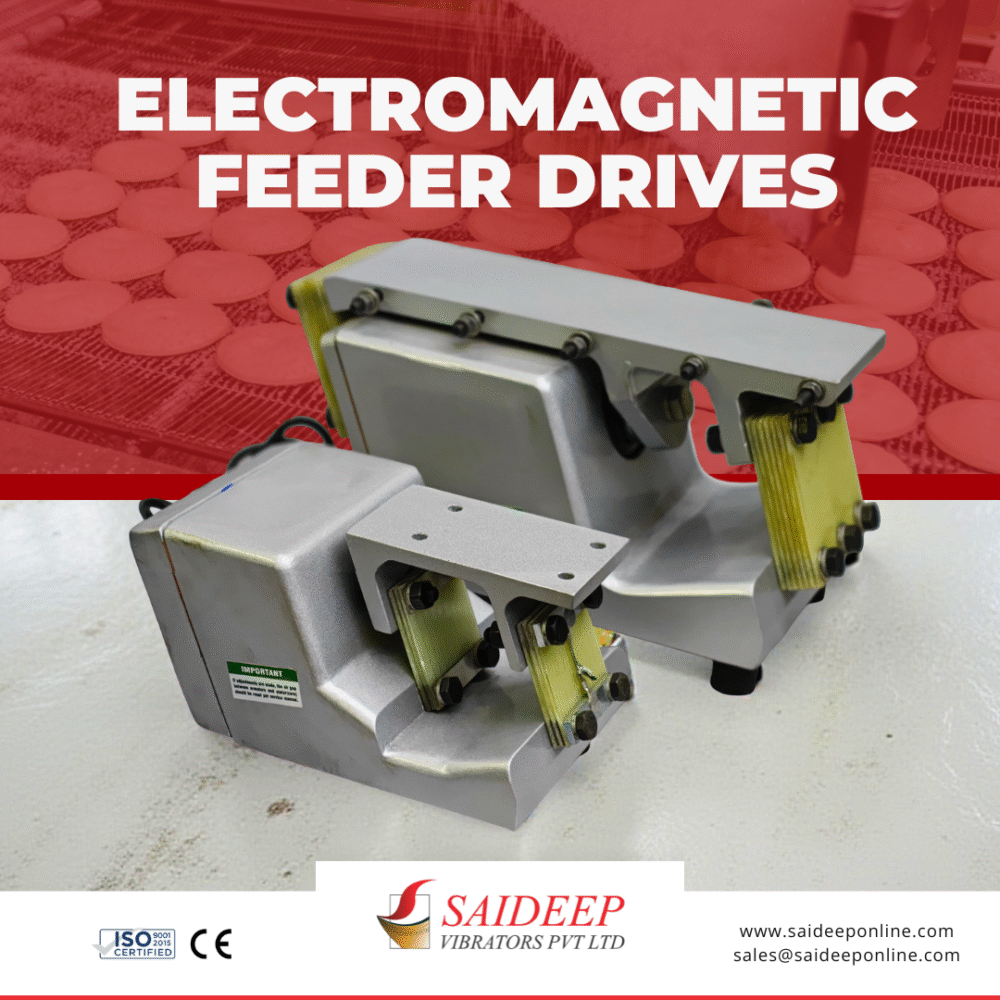

| Drive | Electromagnetic. No mechanical wearing parts, no lubrication required |
| Controller Type | Standard Variable Voltage Controller Or Variable Frequency Controllers |
| Tray types | Pan Tray · Screen Bed Tray · Tubular Trough · ‘V’ Tray · Tray With Feed Hopper · Grizzly Trough |

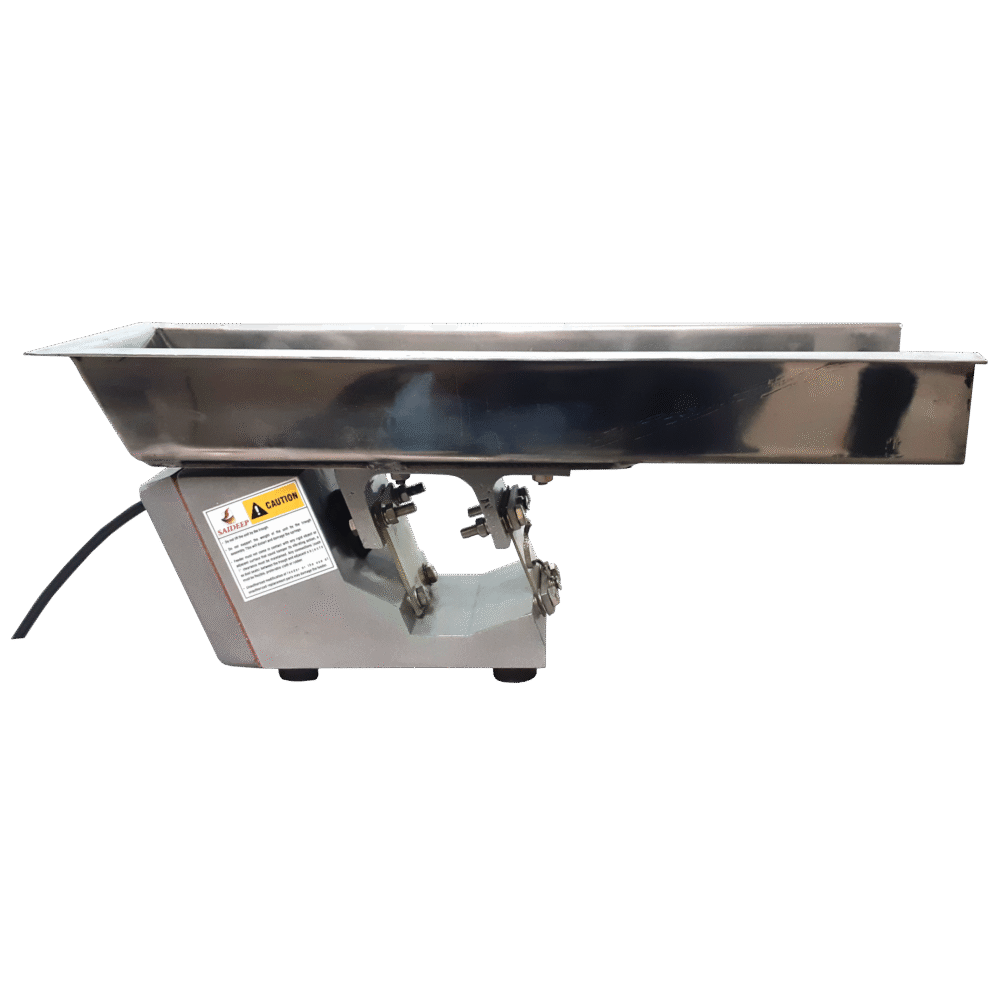

SFF Series - Base Mounted
| Model | Drive weight approx. (kg) | Power consumption (W) | Current input (A) | Max tray size L × W (mm) | Feed rate (TPH) |
|---|---|---|---|---|---|
| SFF-1 | 5 | 15 | 0.2 | 300 × 50 | 0.6 |
| SFF-2 | 15 | 30 | 0.75 | 600 × 200 | 10 |
| SFF-2.5 | 22 | 50 | 0.78 | 700 × 250 | 10 |
| SFF-3 | 54 | 100 | 2.25 | 1000 × 300 | 7.5 |
| SFF-4 | 74 | 180 | 4 | 1500 × 300 | 25 |
| SFF-4.5 | 94 | 200 | 4.5 | 1500 × 300 | 25 |
| SFF-5 | 120 | 600 | 5 | 2200 × 500 | 20 |

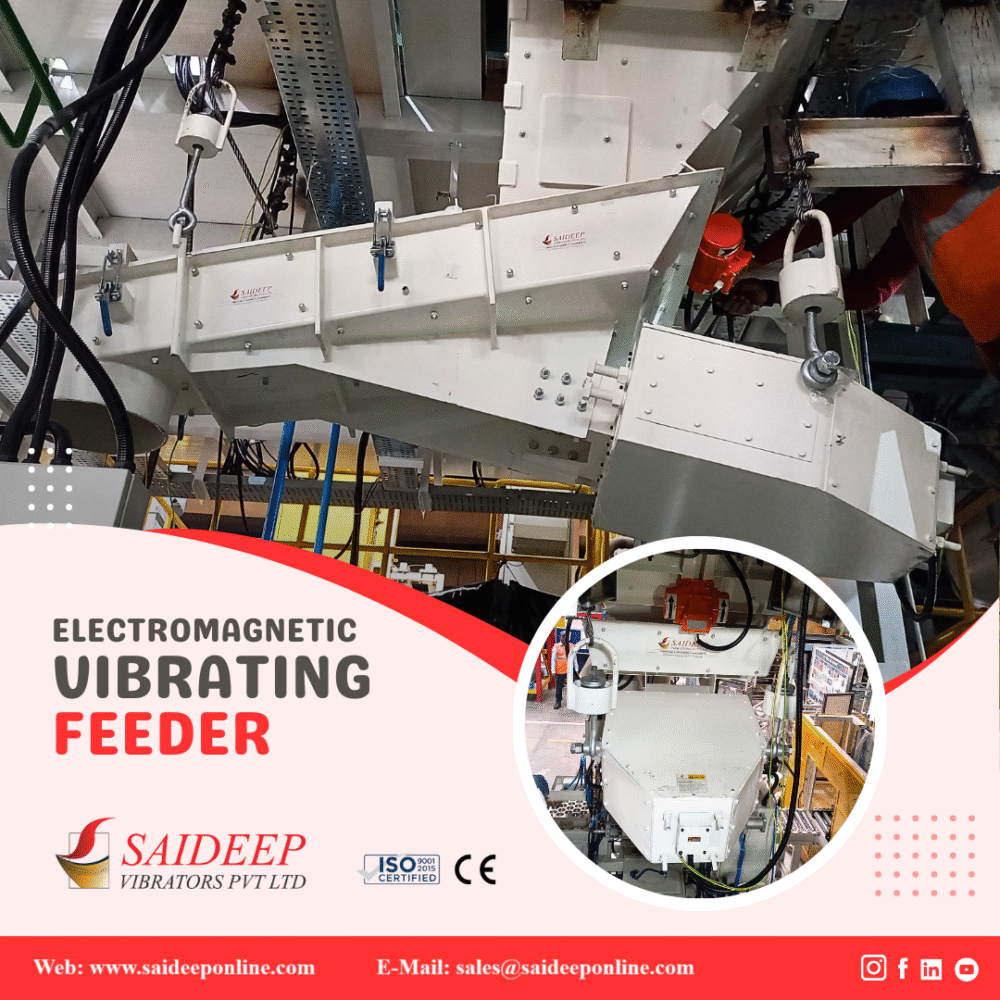

SDF Series - Suspension Mounted
| Model | Tray size W × L (mm) | Capacity per hour | Power consumption |
|---|---|---|---|
| SDF-3 | 300 × 900 | 25 TPH | 350 W |
| SDF-4 | 500 × 1000 | 50 TPH | 600 W |
| SDF-5 | 600 × 1200 | 75 TPH | 900 W |
| SDF-6 | 750 × 1500 | 100 TPH | 1200 W |
| SDF-7 | 900 × 1600 | 125 TPH | 1500 W |
Special HD Series - Suspension Mounted
| Model | Tray size (mm) | Capacity per hour | Power consumption |
|---|---|---|---|
| SDF-3.5 | 500 × 1000 | 60 TPH | 1000 W |
| SDF-4.5 | 750 × 1100 | 100 TPH | 1500 W |
| SDF-5.5 | 900 × 1500 | 150 TPH | 2100 W |
| SDF-6.5 | 900 × 1500 | 200 TPH | 2800 W |
Applicable Areas/Domains
Electromagnetic vibratory feeders are very useful in conveying, dosing OR screening of bulk materials & bulk powders. The Electromagnetic Linear Feeders cater to a wide range of industries such as:

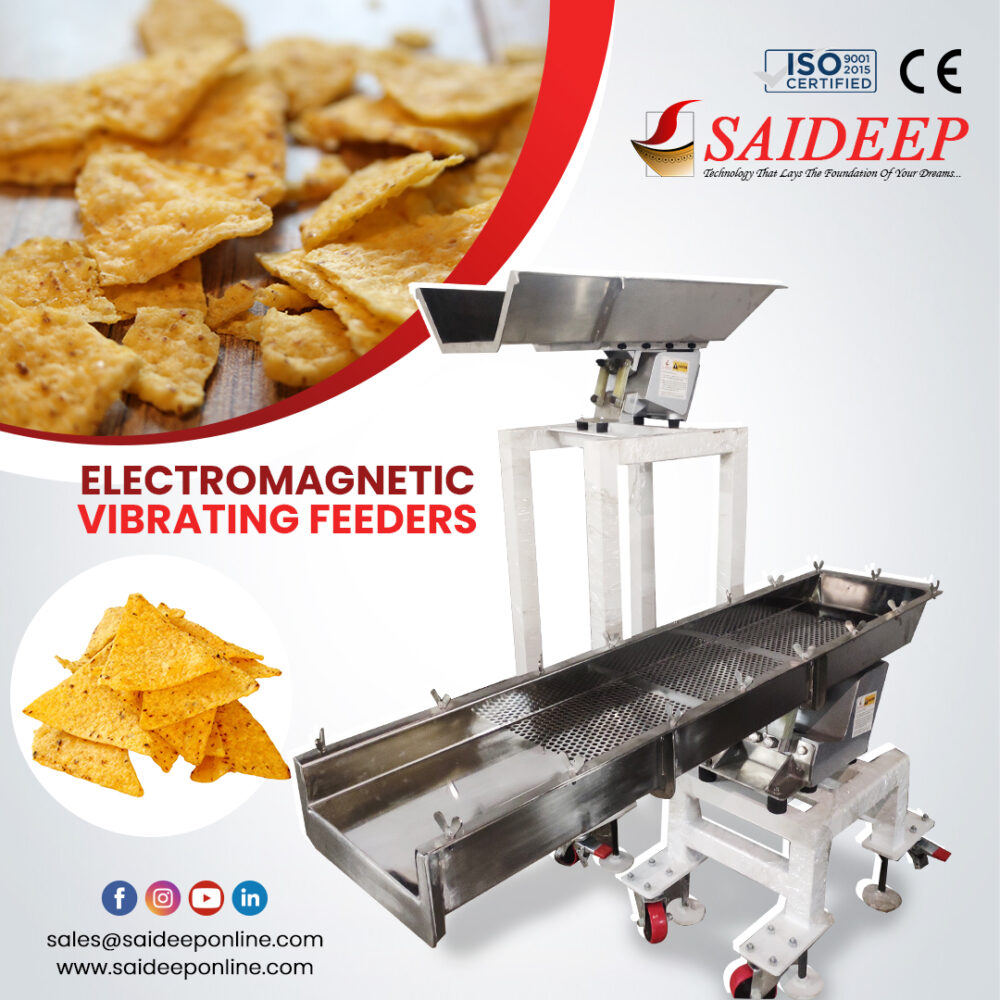

- Snack Food Manufacturing
- Grain & Rice Milling
- Plastics
- Rubber
- Food
- Pharmaceutical
- Chemical
- Fertilizer
- Glass and other allied industries.
The light duty feeders are an excellent fit and an integral part of process & packaging machines such as:
- Color Sorters
- Flavoring / Seasoning Drums
- Multi Head Packaging Machines & Form Fill Seal Machines
- Distribution Conveying Setup

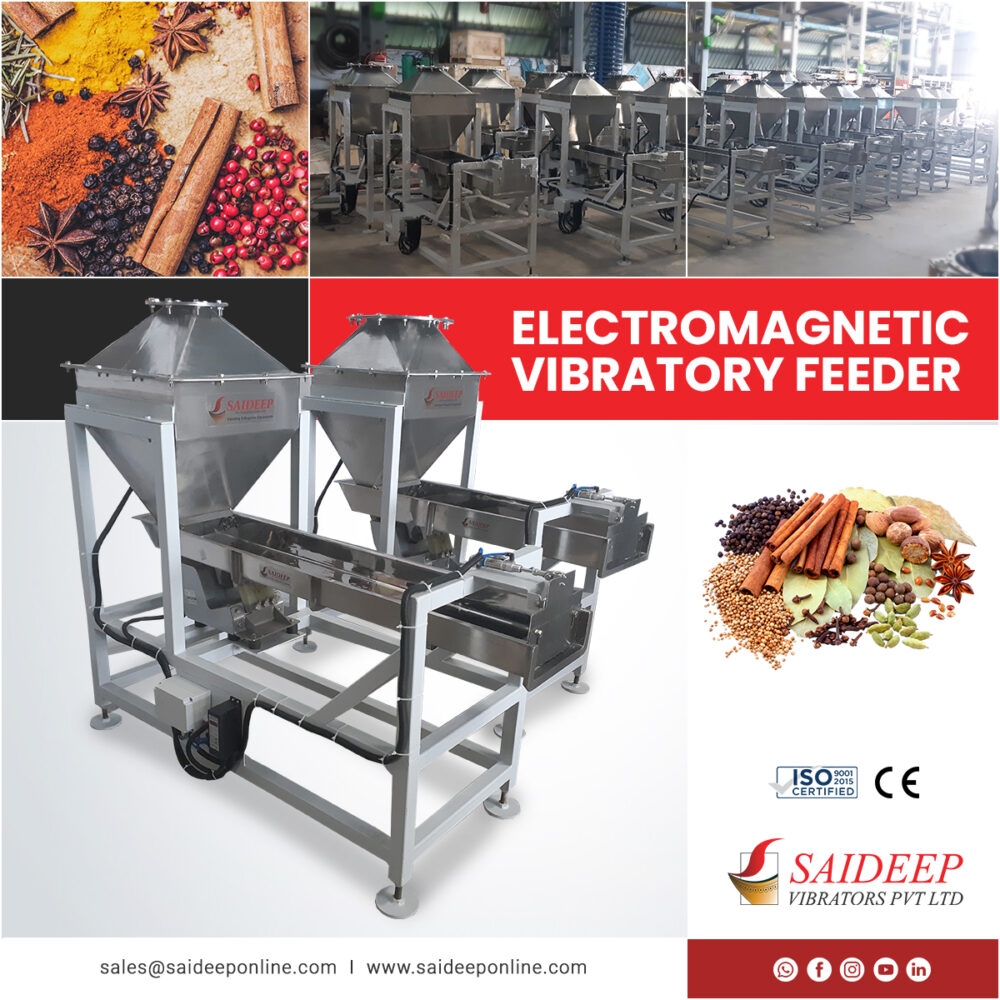

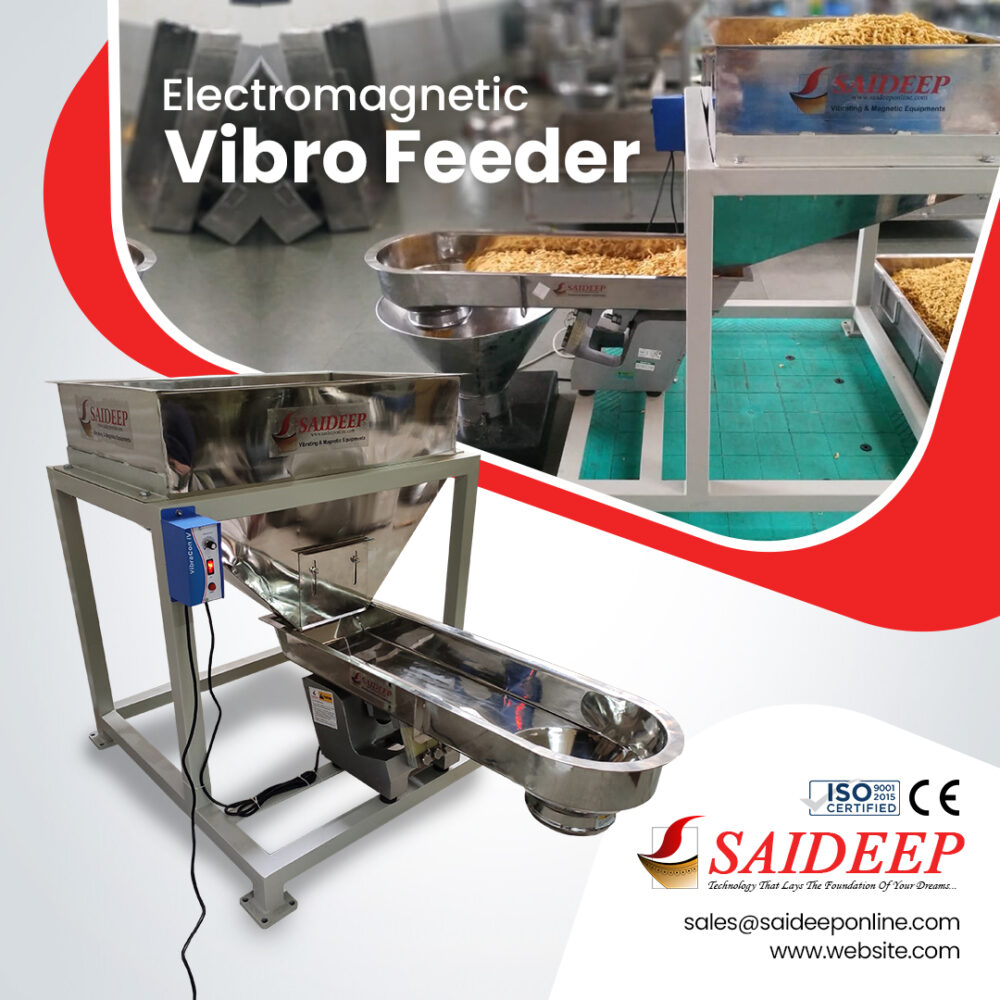

- With Feed Hoppers for Bucket Elevators
- Unloading of materials from discharge hoppers, silos or bins
& many more.
