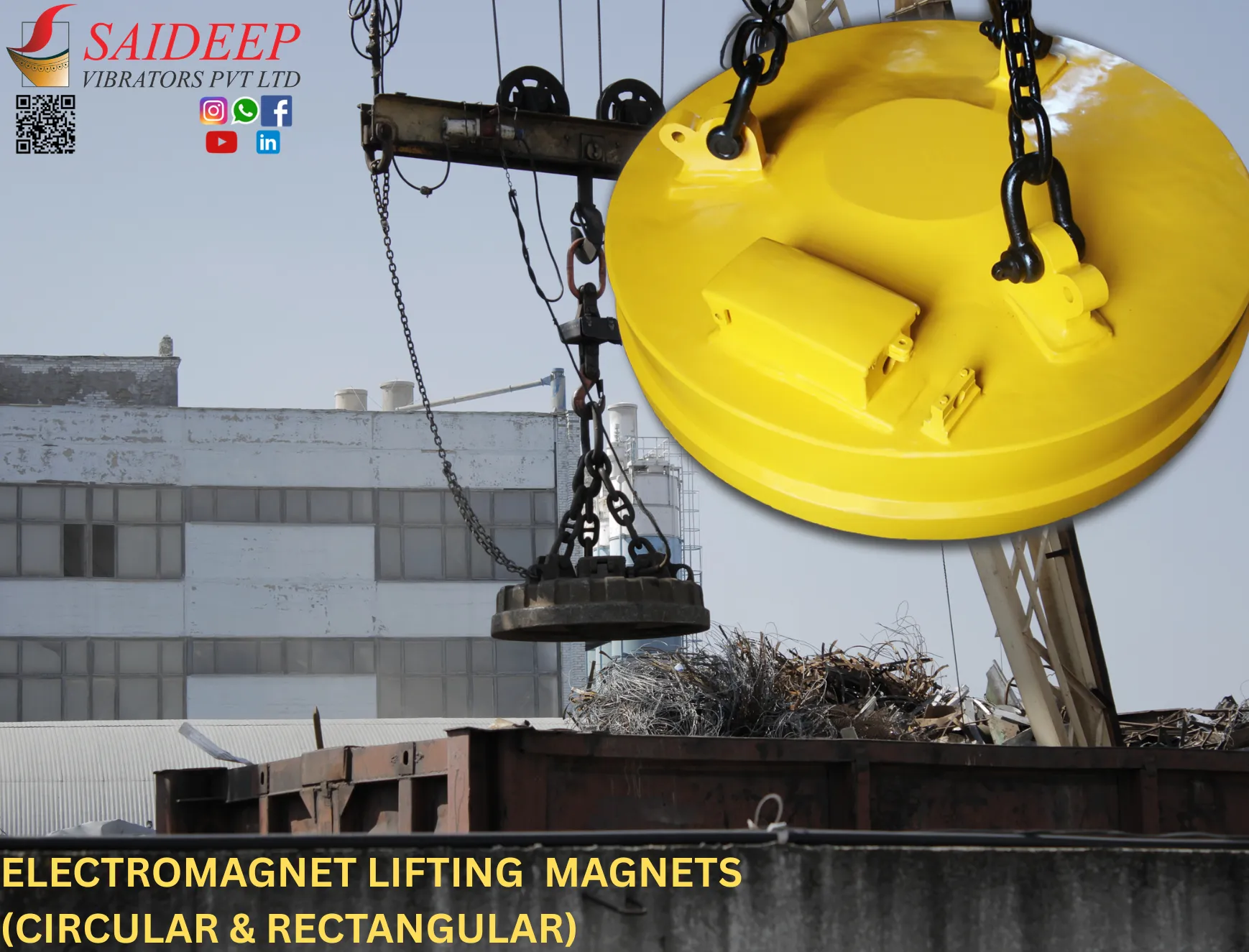

Electromagnetic Lifting Magnet
Saideep Vibrators Pvt Ltd presents Circular Lifting Magnets. These Circular Lifting Magnets are built to work under harsh environments with excellent durability. The shell is casted as a single piece for maximum magnet permeability. Our magnets are designed to run at 50-75% Duty Cycle & great weight to lift capacity.
Features
- Mangenese Steel Plate Bottom Plate for Wear Resistance.
- Copper Wound Coils.
- High Alloy Chain Assembly & Shackels.
- 'Class H' Insulation.
- Moisture & Shock Resistant.
Specifications
| Diameter (mm) | Approx WEIGHT (Kgs) | Cold Amps @230V DC | Min. KW Required | #1 H.M & Pig Iron (Kgs) | #2 Broken (Kgs) | Steel Turnings (Kgs) | Single Billet or Slab (Kgs) |
|---|---|---|---|---|---|---|---|
| 710 | 435 | 12 | 3 | 230 | 90-160 | 90 | 4000 |
| 900 | 725 | 18 | 6 | 290 | 160-230 | 140 | 6900 |
| 1000 | 912 | 30 | 7 | 440 | 250-350 | 170 | 8000 |
| 1190 | 1164 | 44 | 13 | 545 | 270-450 | 225 | 10000 |
| 1350 | 1450 | 50 | 13 | 865 | 300-590 | 250-340 | 12200 |
| 1500 | 2160 | 56 | 15 | 1270 | 335-800 | 315-360 | 15750 |
| 1700 | 3080 | 78 | 20 | 1900 | 600-1400 | 550-650 | 22500 |
| 1800 | 4000 | 90 | 25 | 2500 | 1365-1590 | 635-725 | 36500 |
| PS NOTE: As performace of any lifting magnet will vary with the specific operating conditions, the above capacity must be used as a reference only; Actual lift may vary. | |||||||
