Tumbler Screen
Tumbler Screen

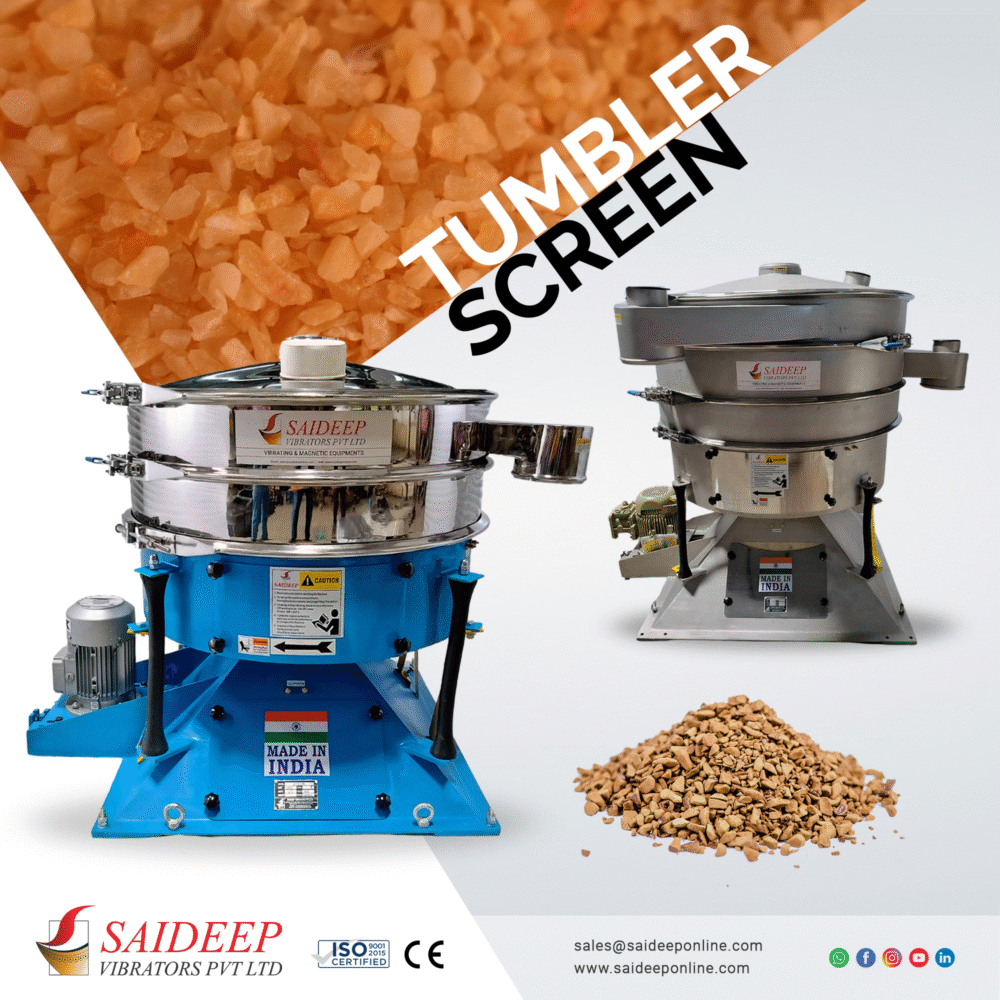

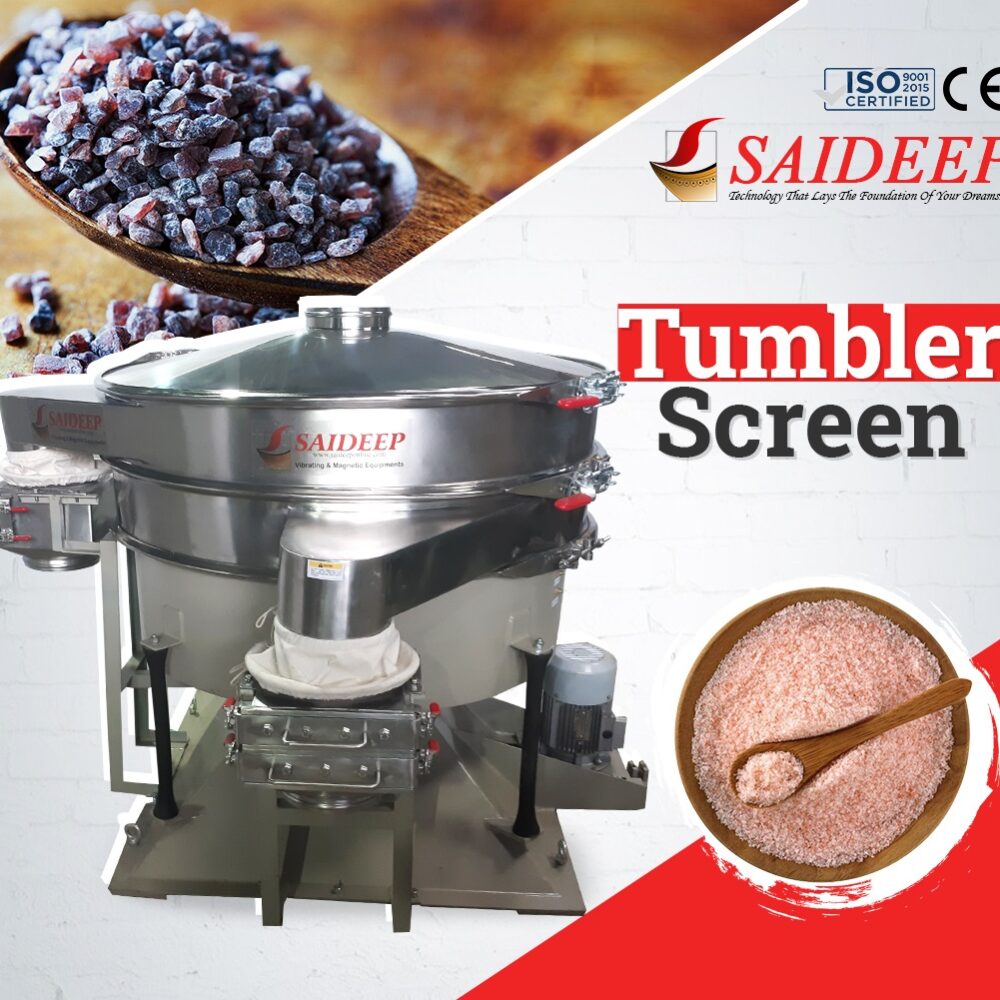

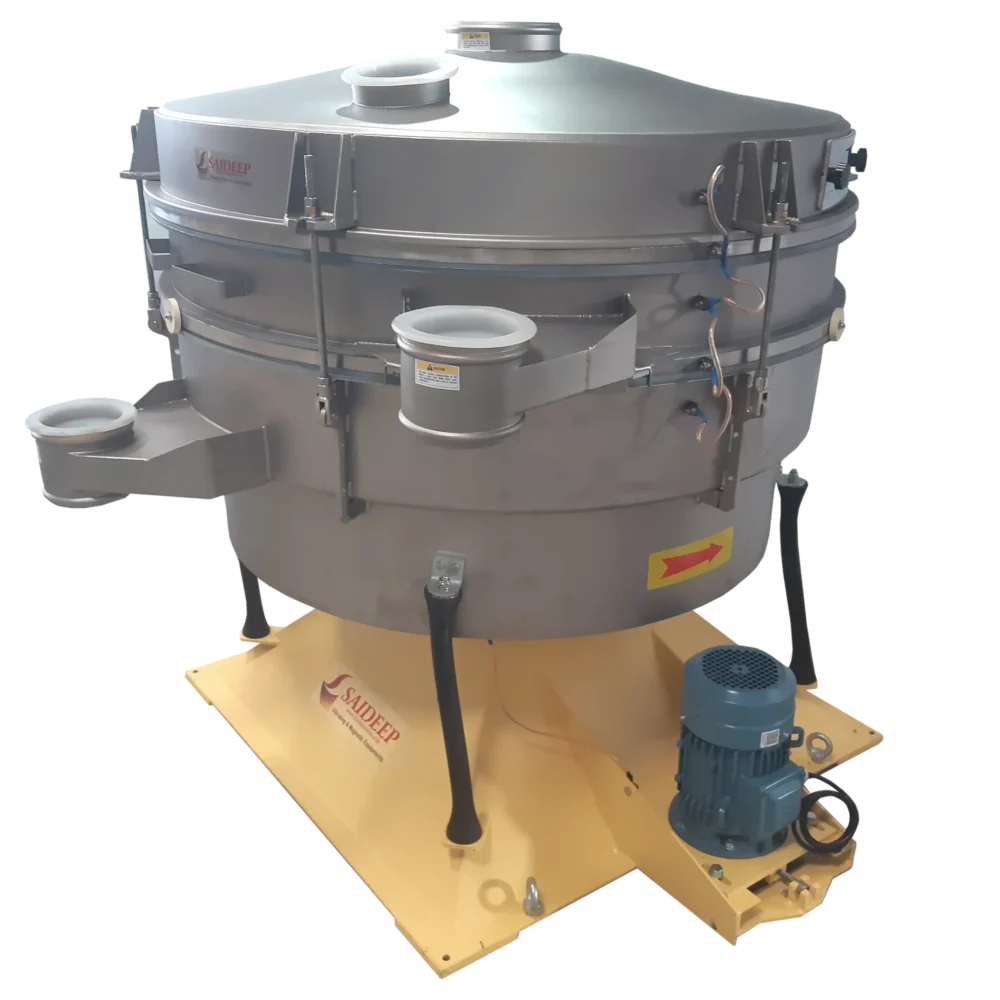

The Tumbler Screening Machine is a unique sieving equipment that is capable of screening High & Low Bulk Density powders with extreme high efficiency. It helps grade or separate materials in multiple fractions as desired or as based on the application.
The powders or granules are continuously fed into the centre of the screen & the tri-planer elliptical movement of the screen helps spread out the material uniformly. Due to the said motion created all fines pass through the sieve & the coarser moves towards the circumference of the decks.
The 3D weight-adjustment system allows the users to set the sieve movement intensity & the entire system is driven with the help of an Electric Motor & V-belts linked to the shaft. The Tumbler Screens are available in 36 inch & 48 inch diameters with optional MOC in Mild Steel (MS) OR Stainless Steel (SS 304 / SS316L).
Advantages
– Extreme High Efficiency even with products having lower bulk densities.
– Multiple Screens can be added to get an array of grades.
– Quick clamping arrangement to minimize the change over time.
– Optional Anti Chocking Systems such as Ball Tray, Soft Ware Resistant PU Pipe Tray & Ultrasonic System.
– Low Noise creation.
– Screens are replaceable with our existing Vibro Screens.
– Equipped with Heavy Pyramid Machine Base for better stability.
