Magna Roll | Magnetic Destoner

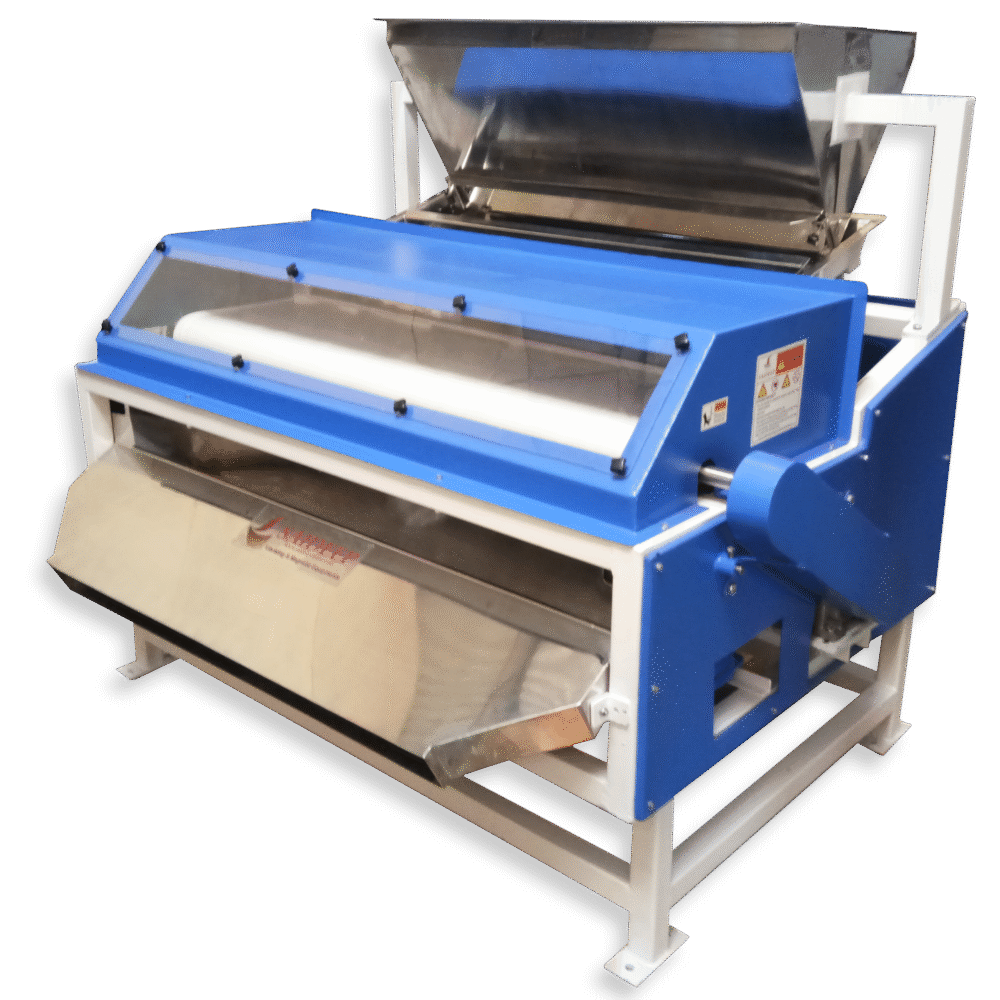

Saideep Magna Roll Separators aka Magnetic Destoners are roll type magnetic separators with fixed magnet having high field intensity and gradient. The magnets used in the Roller Magnetic Separators and made of High Grade Rare Earth Magnets. They generate high attraction forces on the magnetic roller due to their properties and special magnetic series. The obtained high magnetic attraction forces have low magnetic sensitivity and therefore they make it possible to separate very fine low magnetic minerals with a high recovery.

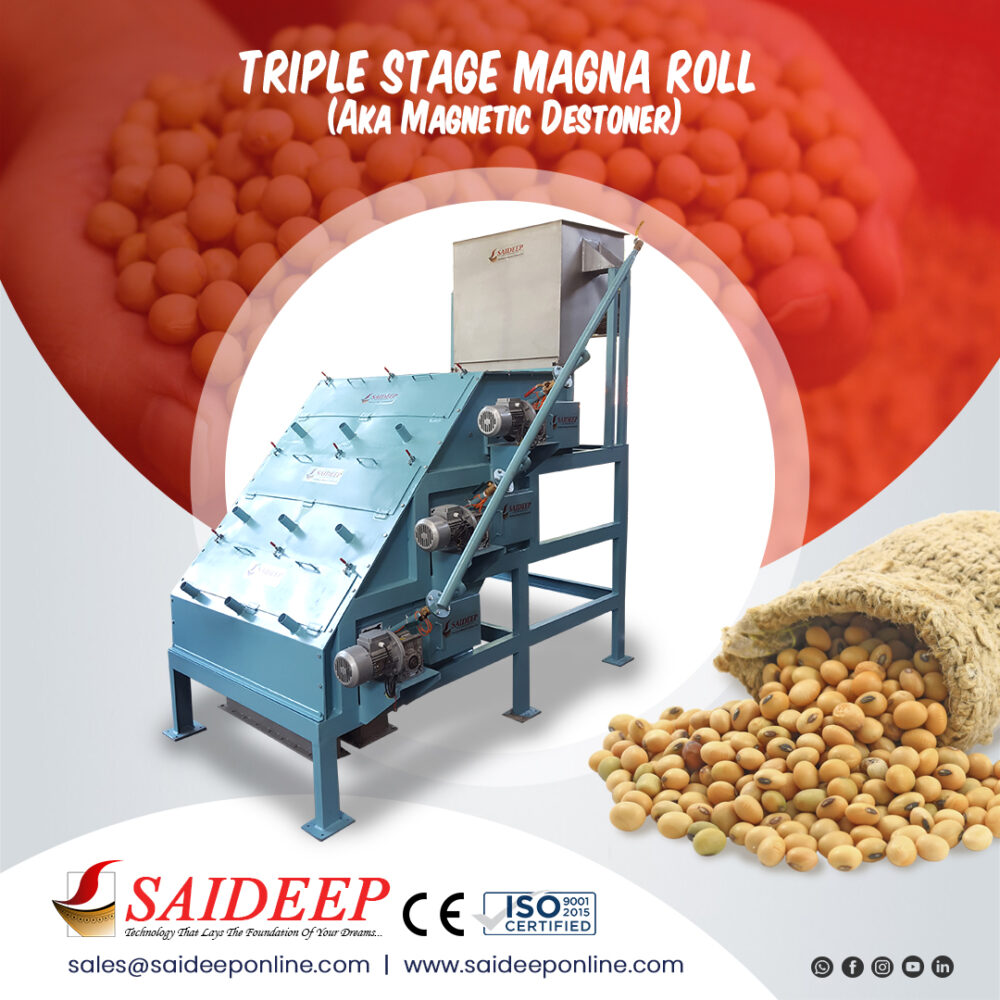

Magnetic Roll Machines have a number of standard sizes in which the high gradient separators are produced, and all of these sizes only require a low installation height. It is also possible to make a system in accordance with customer specifications. Depending on the requirements made and the application, a choice can be made for a single stage system or for multiple magnet rollers under one another. This results in an even higher degree of iron separation.

Saideep being Asia’s leading manufacturing Company in Permanent Magnetic Equipment and Vibrating Equipment in Dry/Wet Separation of minerals and metals. The Dry Permanent Magna Roll Separators systems are unique in nature and we are supplying similar equipment throughout the world and more than 1000 Industries are having our Equipment. Our experience since 1971, we can separate from Coal to Gold in all minerals and metals from anywhere in the world, depending upon on their mining location, we are able to provide you complete solutions to upgrade your metals, minerals and your processes.
These Magna Roll Separators are highly effective of separating para magnetic particles and weakly para magnetic particles separately. These Rare Earth Magnetic Separators are made up of very high power specially developed (Nd-Fe-B) with highest magnetic power available in the series to enable us to achieve very high Gauss value compared to other similar products.

Features

  • Magnetic Roll Separators are available in Single or Multi Stage Machines for higher level or iron separation. As a standard practice all contact surfaces of the magna roll machine are made in SS 304 or SS 316 ONLY.
  • Magnetic Rolls are manufactured in Diameter 100 or 150 mm having a width ranging between 300 mm to 1500 mm of magnetic zone.
  • Magnetic Rolls are made of High Grade NdFeB Rare Earth Magnets being able to achieve upto 14000 Gauss Power on the magnets surface.
  • Saideep Vibrators Pvt Ltd has designed its own quick belt change procedure to minimize down time of equipment in case of a belt wear.
  • Belt Material Options: Kevlar | Teflon | Graphite | PU Belts.

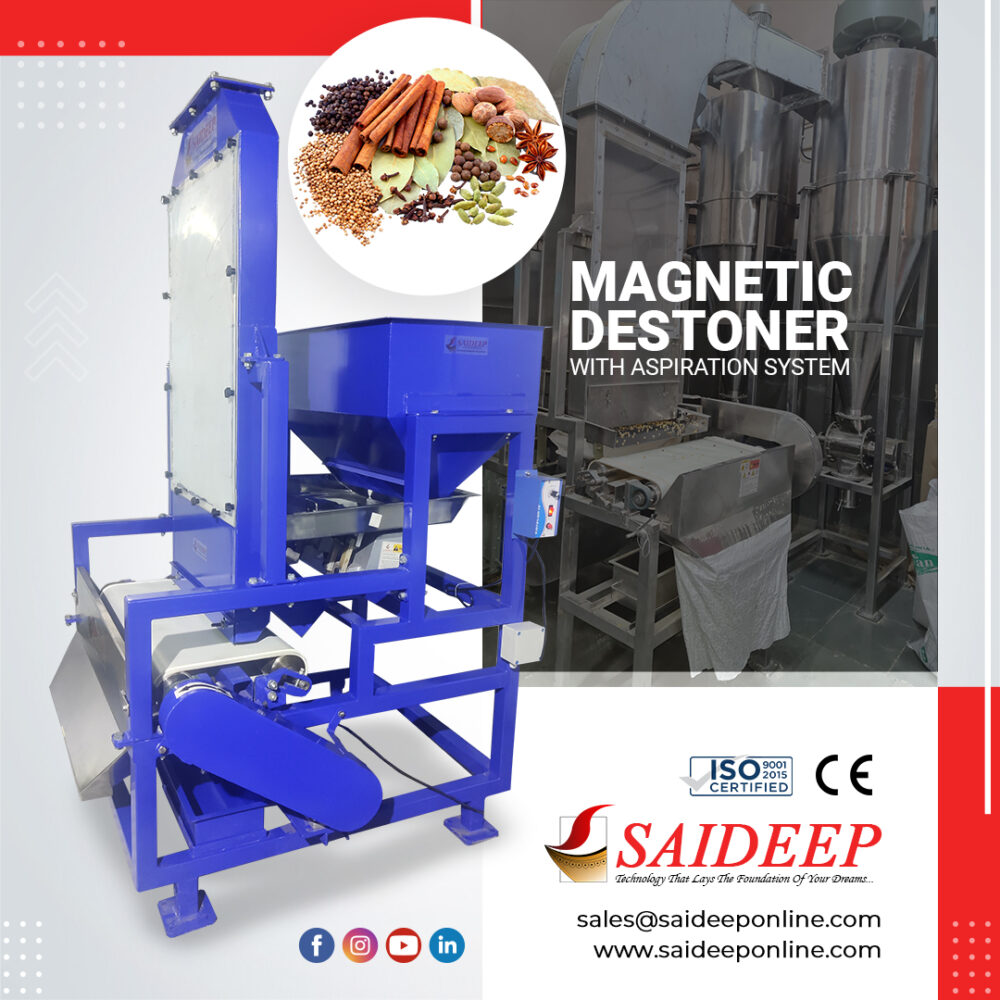

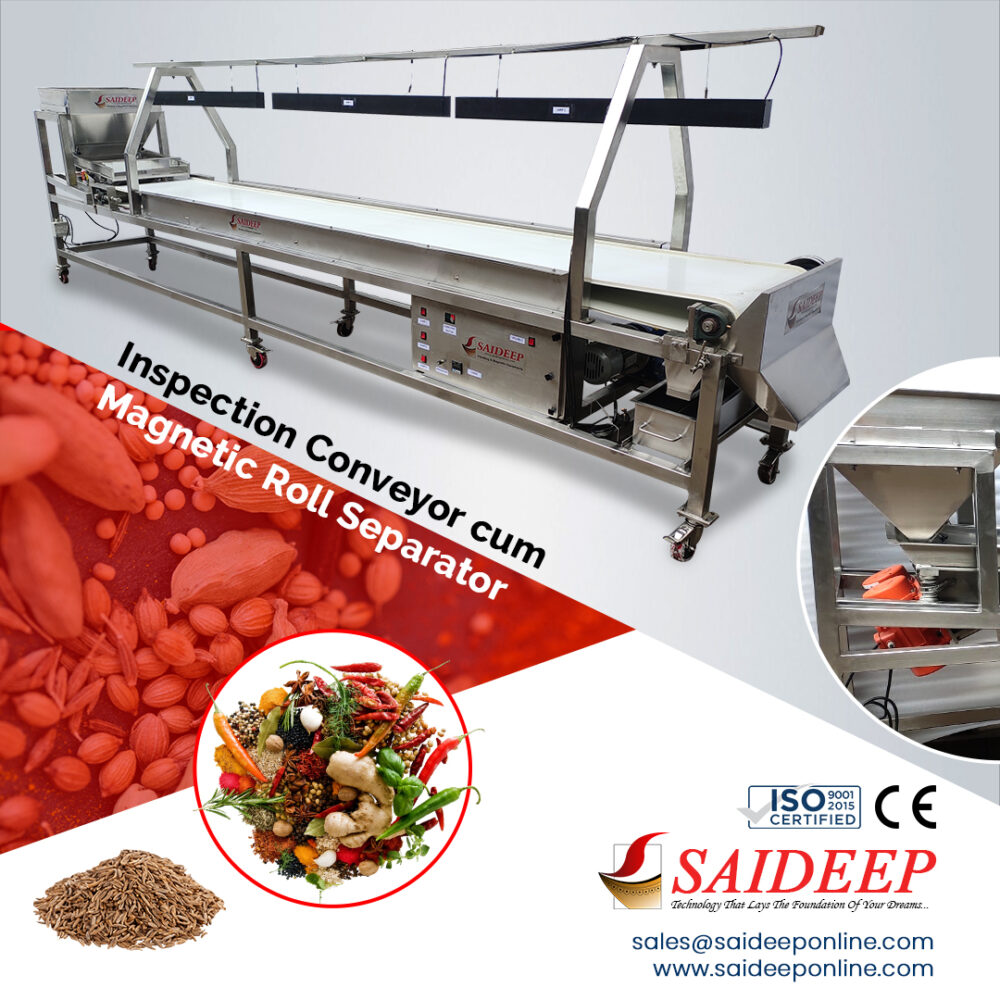

  • Optional Upgrades: Dust Proof Enclosures | CIP Systems | Variable Belt Speed Mechanism | Elongated Belt Conveyors for Inspection | Aspiration Channels for removal of fine dust, hair, plastic strands or product shell/skin.
  • Magnetic Roll Separators can be supplied as:
    • Only Magnetic Rollers
    • Complete Magnetic Roll Separator Machines with Feed Hopper & Vibratory Feeder.

Applicable Areas/Domains

  • Food & Spice Processing Lines.
  • Industrial Minerals: Quartz Sand, Beach Sand, Feldspar, Crushed Aggregates & other Minerals.
  • Grain & Agro Milling.
  • Activated Carbon.
  • Plastic Granules, Pellets, Compounds.
  • Abrasives such as aluminum oxide, silicon carbide, grinding grits / media. etc
