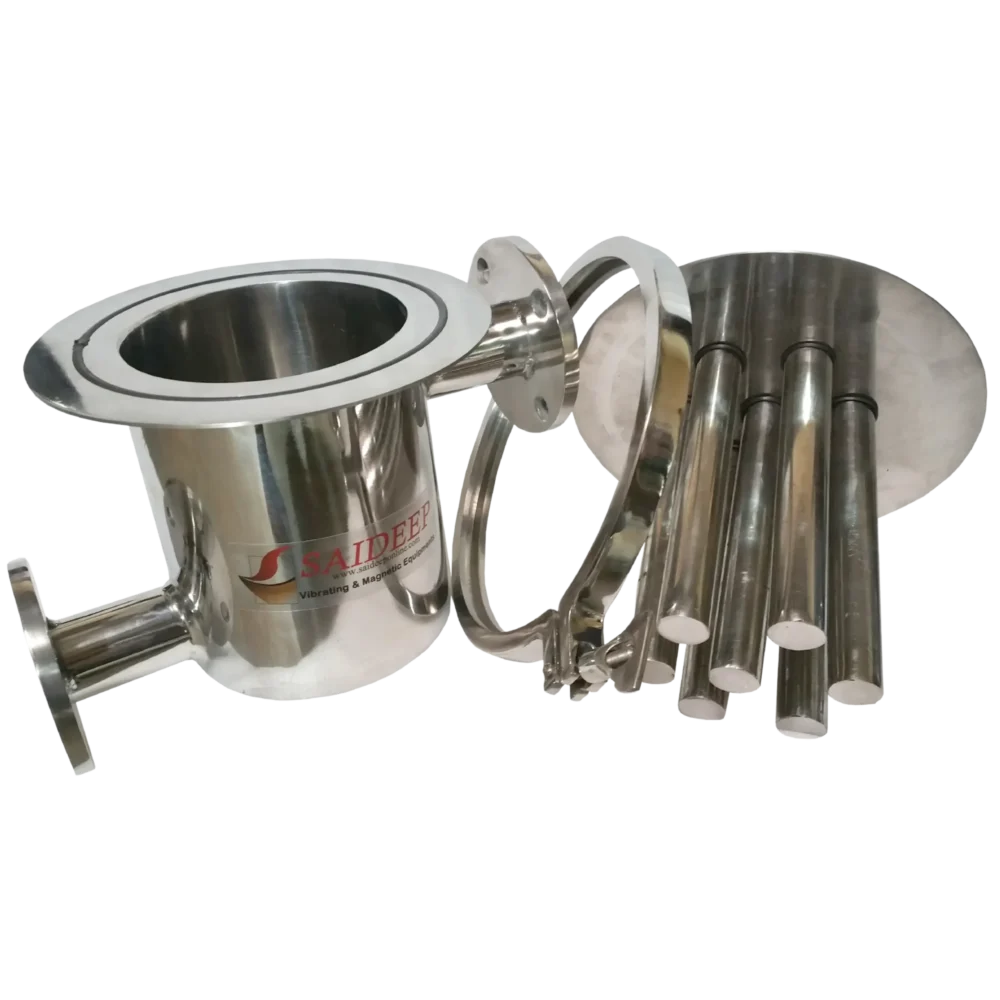

Magnetic Pipe Filter

Inline Pipe Magnets are under in liquid lines wherein fine ferrous contamination needs to be arrested. The liquid line pipe magnets can be installed with new or existing pipelines through Flanged Connectors or TC Clamps. These high power magnets have the ability to hold the iron contamination strongly under constant line pressure.

Selections for the Inline Pipe Magnets is done based on the liquid viscosity (Fluid & Strained | Fibrous & Pulpy | Thick & Heavy Viscosity).

Inline Pipe Magnets are fabricated in Stainless Steel housings & are designed to work under pressure lines. The said magnetic separator can be installed in any position in a pipe line & must be cleaned manually in periodic intervals.



Specifications

  • Line Size: 1.5 inch to 18 inches.
  • Magnet Type: High Grade NdFeB Rare Earth.
  • Gauss Power Options: 10000 OR 12000 Gauss.
  • MOC Options: SS 304 or SS 316/316L.
  • End Connectors: Flanges (Available in All Models) or TC Clamps (Only Smaller Line Sizes).
  • Suitable to operate under 2 Bar Line Pressure
  • High Temperature Magnets available upon request.

Applicable Areas/Domains

  • Paper Pulp Processing
  • Sugarcane Juice or Fruit Juice
  • Dairy Applications
  • Edible Syrups & Breweries
  • Assorted Oil Processing
  • Paints & Ink Processing
  • Ceramic Industry
  • Filtrations of Machining Coolants in CNC's etc
