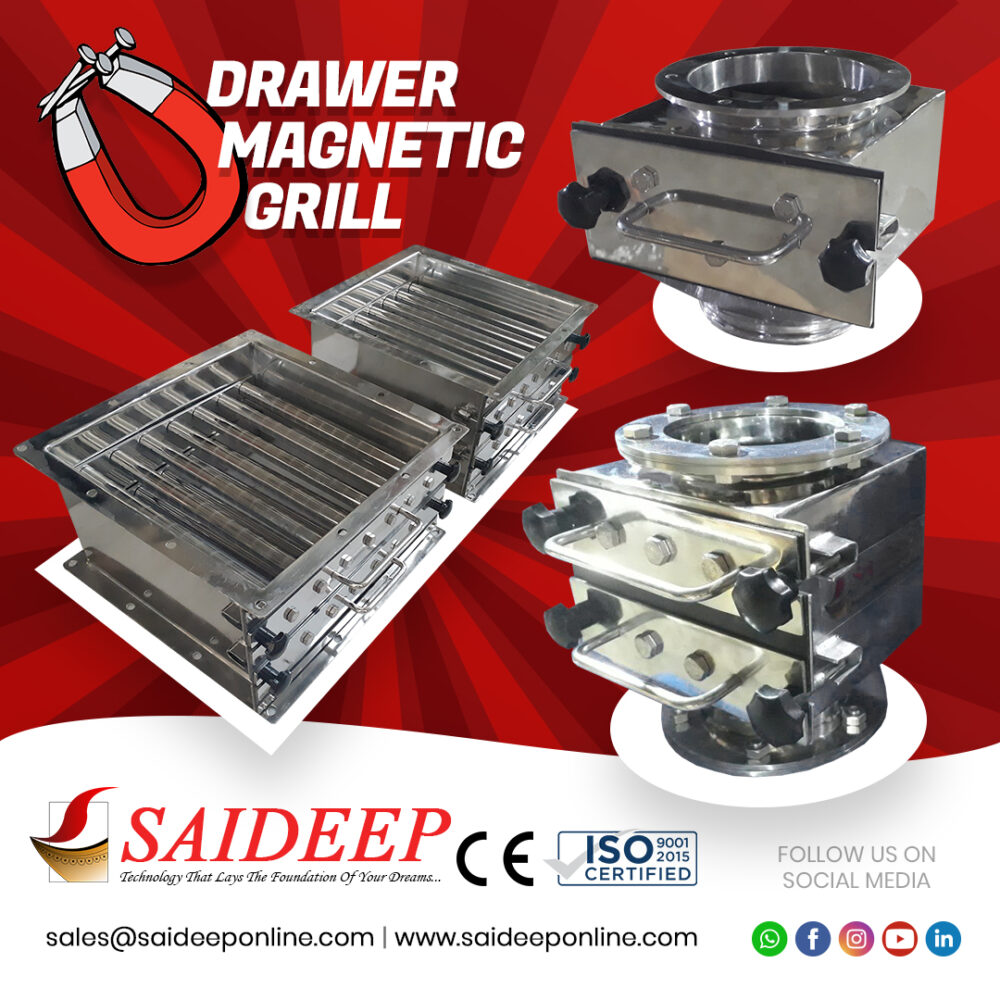

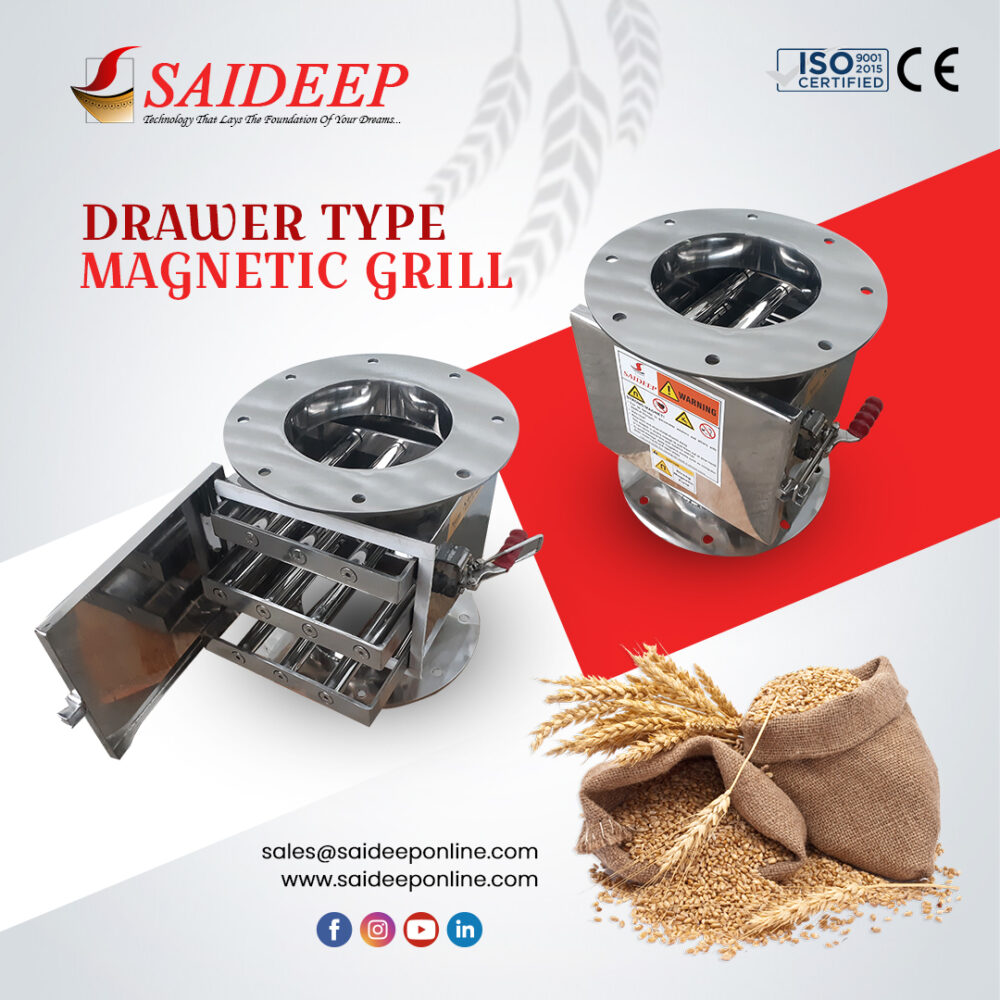

Drawer Magnetic Grill

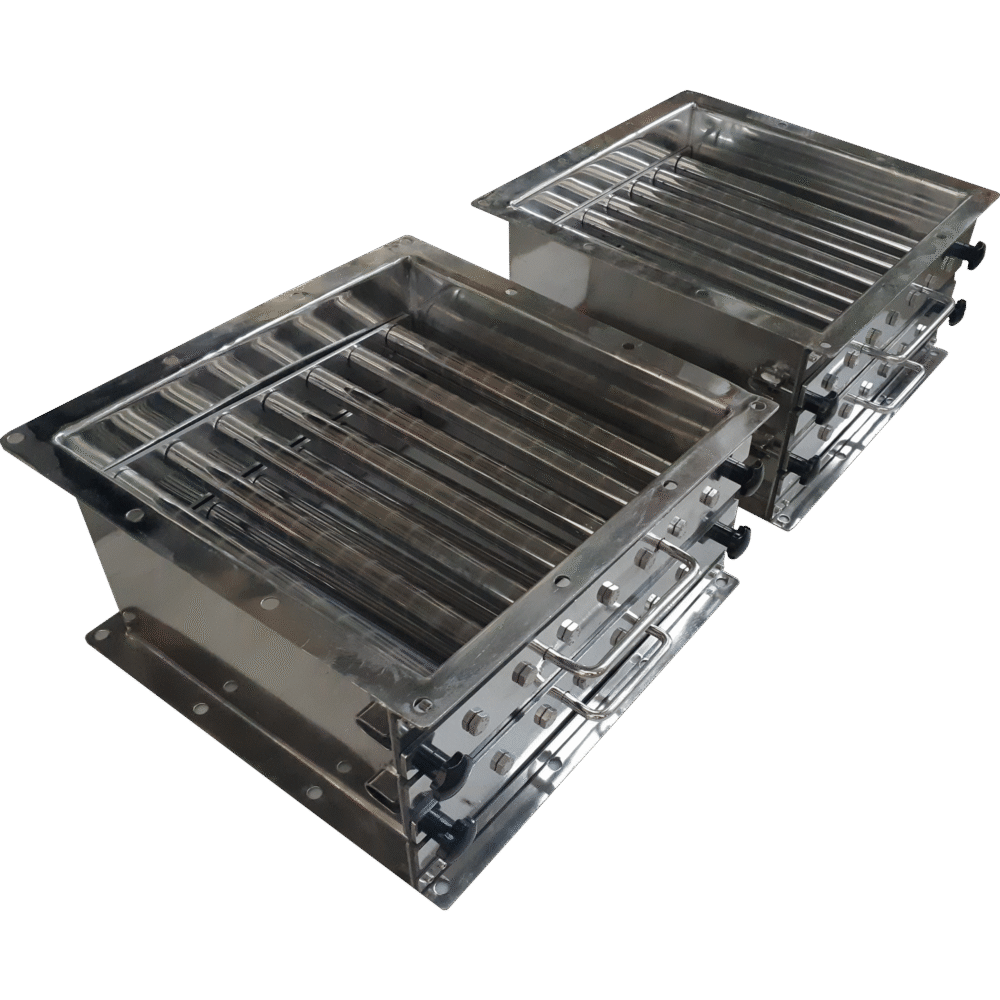

Drawer-in-housings are used primarily in vertical chutes for removal of free flowing bulk materials. The drawer in housing designs are offered in simple, inexpensive manually cleaning designs, easy clean, or air or electrically actuated automatically cleaning designs. Food grade finish is available as is any number of tube configurations to optimize the design for your product. The standard tube configuration is staggered so the material must flow around the tubes and tramp metal removal is maximized.

Specifications

  • Drawer Housing Types: Square / Round / Rectangular.
  • Multi Stage Options for higher ferrous removal accuracy.
  • MOC Options: SS 304 Or SS 316/316L.
  • Magnet Options:
    1. Strontium Ferrite
    2. NdFeB Rare Earth
    3. High Temperature NdFeB SH Grade Rare Earth Magnets
  • Gauss Power Options: 2000 | 5000 | 8000 | 10000 | 12000 Gauss.
  • Flanged or Rubber Bellow Connectors.
  • Leak Proof Designs with CNC cut Rubber Gaskets.
  • Easy To Clean mechanism across all designs.

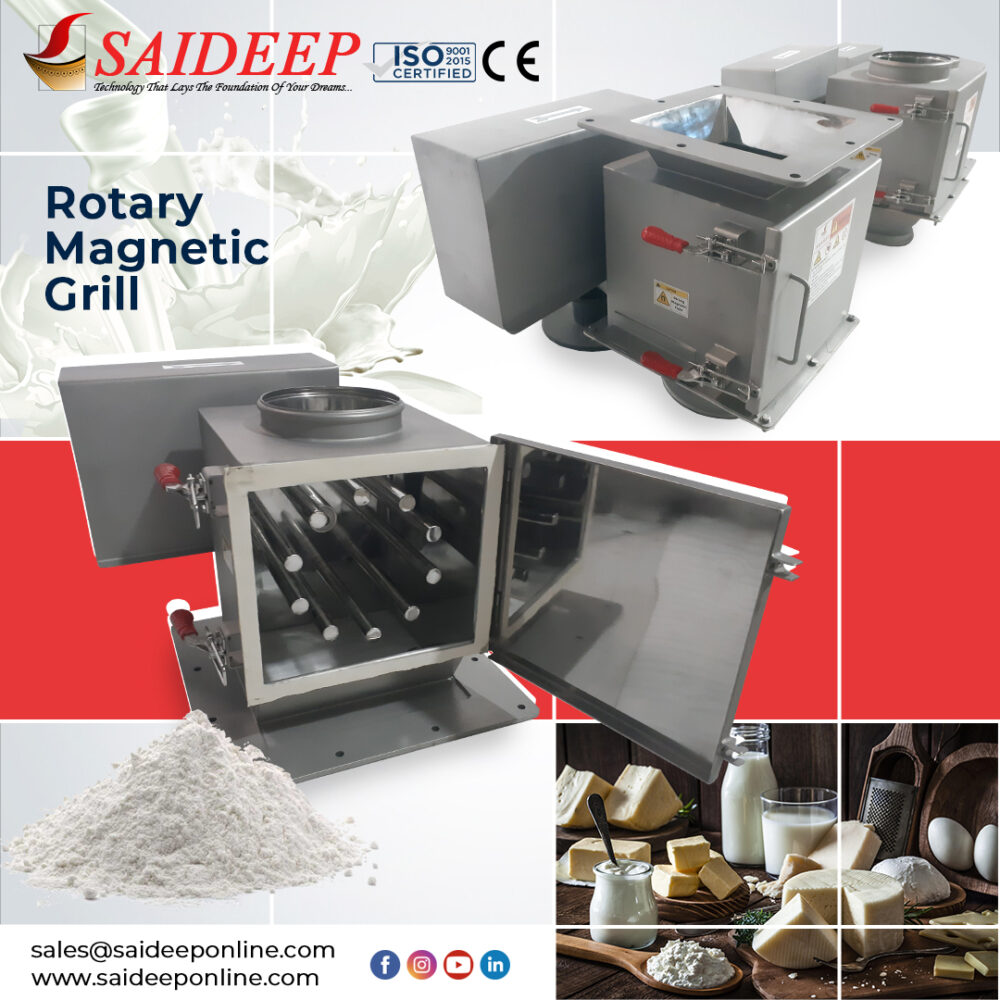

  • Automation Options: Semi or Fully Automatic Cleaning | Rotary Grates For Sticky Materials.

Applicable Areas/Domains

Drawer Magnetic Grates are widely used in bulk solids & bulk powder handling lines to eliminate any sort of ferrous contamination from materials flowing within process lines or machinery. They can be used across multiple sectors such as:

  • Food & Spice Processing
  • Grain & Agro Milling
  • Chemical Powder Processing
  • Aggregate / Sand & Mining Sectors
  • Pet Food Industry
  • Glass Manufacturing Units
  • Plastic & Metal Recycling Lines etc
