Magnetic Pulley
Magnetic Pulley
Saideep manufacture a wide range of Rare Earth and Ferrite Magnetic Pulleys. These Pulleys are widely used to remove tramp iron mixed with the material moving on a conveyor belt.

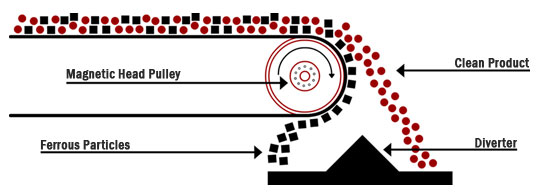

The Magnet pulleys are always installed at the discharge point of the conveyor to separate tramp iron from the product moving on the conveyor belt.
Applications
The permanent magnetic pulley is dual-purpose equipment used for protection of crusher Jaws or other machinery and also for purification and concentration of magnetic material from the mines. It has the widest application in food, chemical, ceramic, paper, coal handling, foundry operation and mining industry.
Construction
The magnetism in a Permanent magnetic pulley is produced by internal assembly of magnets enclosed in non magnetic stainless Steel shell. The steel Shaft is extended on both sides. One side is provided with Keyway. The Pulleys have a face width of 50 to 100 mm more than the belt width. The magnetic strength of magnetic pulley depends on the diameter and also quality of magnets used. Pulleys with Rare Earth Magnets can handle depths upto 300 mm.

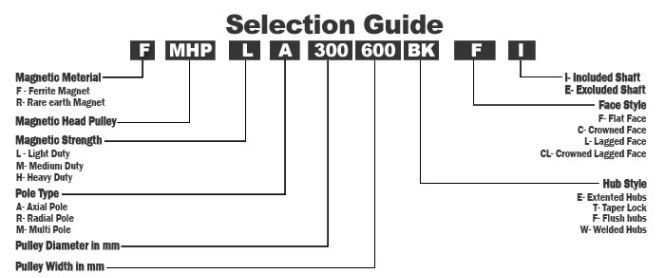

Selection
Pulley width is determined by the width of conveyor belt to be used. Diameter depends on, depth of material and speed of the conveyor. It can be designed to suit customer’s application.
