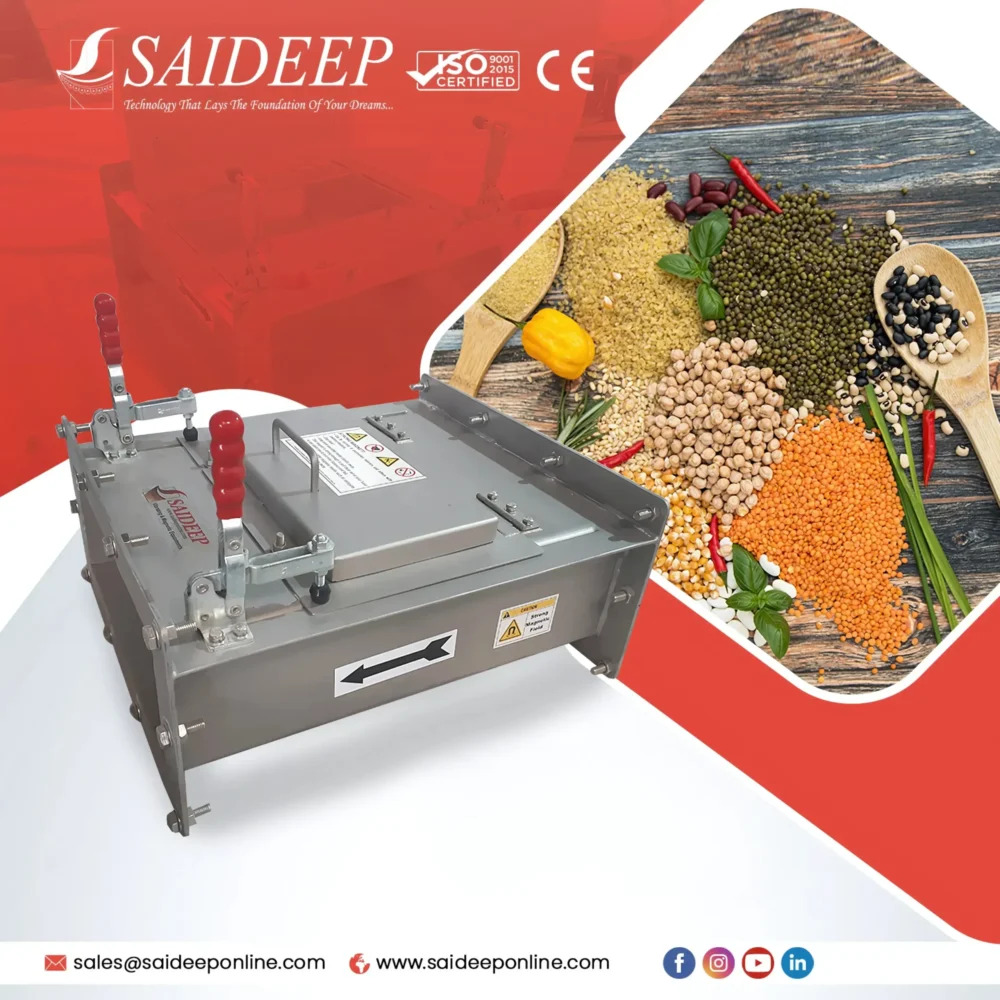

Magnetic Chute & Plate

Saideep Super Power Rare Earth Magnetic Plates are used in process lines to trap iron contamination from chutes, spouts, ducts, pipe lines, or can be closely suspended over belt conveyors. These magnetic plates help safe guard the process machinery or the downstream equipment for iron parts that can damage parts of running machines such as blades / shredders / pulverizers  / grinding equipment.

Magnetic Plates are manufactured in different gauss powers & are selected based on the type of ferrous contamination that needs to be eliminated. The iron contamination may be in form of small particles such as mudballs or pins or grinds, they can be in the form a medium sized particles such as screws, washers, broken chipped machine parts or can be found in large segments. Ideally the plate magnets are designed for the material to flow in contact with the surface plate of the magnet, however it can also be used by suspending it over the material in close proximity.

Specifications

  • Magnetic Plate Sizing can be customized based on the area of installation.
  • The Magnetic Plates can be designed to have multiple poles which can be flat surfaced or raised based on the application & the product in flow.
  • Magnetic Plates can be manufactured using Strontium Ferrite Magnets or NdFeB Rare Earth Magnets.
  • Magneti Gauss Strength Options: 2000 | 3500 | 5000 | 8000 | 10000 Gauss
  • Contact surface can be fabricated in SS 304 / 316L or J4 Steel plates.

Applicable Areas/Domains

  • Food & Whole Spice Industry
  • Grain & Rice Mill Processing.
  • Glass Processing / Foundry Applications.
  • Chemical Granules
  • Activated Carbon
  • Plastic Recycling & Process Industry
